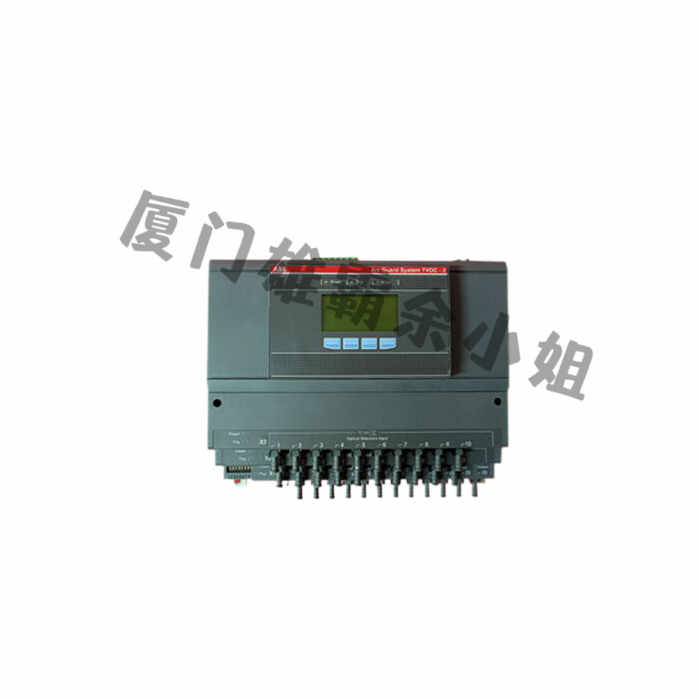

TVOC-2-240 ABB Arc light monitoring system/arc protection relay

1、 Basic Information
Product Name: TVOC-2-240
Brand: ABB
Product Type: Arc Light Monitoring System/Arc Protection Relay
Product Code: 1SFA664001R1001
2、 Functional Features
Arc detection and protection:
TVOC-2-240 detects the light generated by the arc and uses fast IGBT contacts to send electrical signals to nearby circuit breakers within 1 millisecond to disconnect the power supply and extinguish the arc. This fast response time is crucial for preventing damage to personnel and equipment caused by arc faults.
The system consists of arc monitors equipped with optical sensors for detecting arcs. For certain special applications, additional current sensing units can be added to prevent external factors such as strong light (such as sunlight) from inadvertently triggering the system.
System composition and scalability:
The arc monitor has 10 detector inputs and can trip up to three area selective circuit breakers if needed.
Up to 2 expansion units can expand the number of light detectors to 30, including an HMI (Human Machine Interface) that can be placed outside the door.
The length range of the detector is wide to accommodate complete switchgear designs.
Safety and reliability:
The TVOC-2 arc monitoring system has obtained functional safety (SIL-2) standard certification and complies with IEC61508 and IEC62061 standards. These standards ensure the reliability and safety of the product.
3、 Application scenarios
TVOC-2-240 is suitable for various occasions where arc faults need to be prevented, such as low and medium voltage switchgear. Its design emphasizes the reliability, flexibility, and simplicity of the product, providing reliable arc fault solutions for various devices.
4、 Technical parameters
Power supply voltage: 100… 250 V DC or 100… 240 V AC 50/60 Hz
Size:
Product net width: 210mm
Product net height: 230 millimeters
Product net depth/length: 80mm
Net weight of product: 1.2 kilograms
