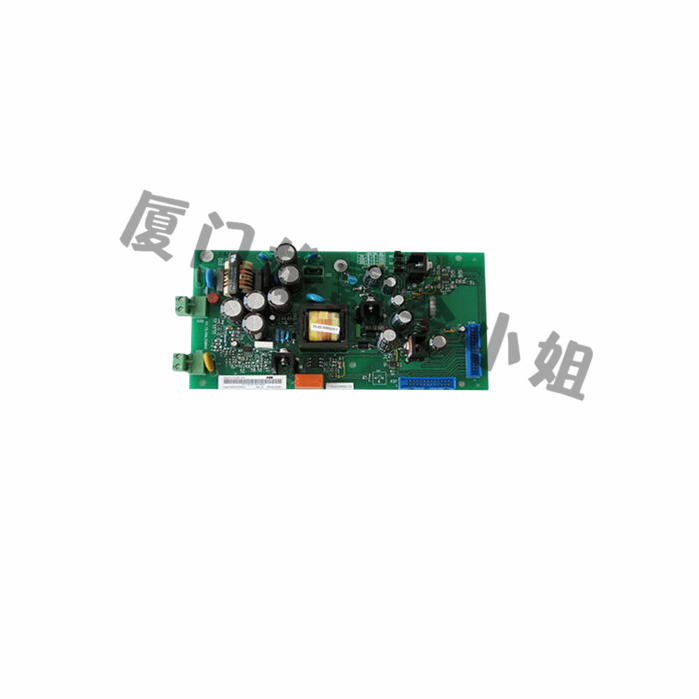

SDCS-PIN-48-SD ABB Pulse Transformer Board

1、 Product Overview
Brand and Model: ABB, SDCS-PIN-48-SD
Type: Pulse Transformer Board
Application scenario: Mainly used for receiving and processing pulse signals, commonly found in ABB’s DCS800 series DC speed controllers, to achieve precise control of motor speed or position.
2、 Product Features
Electrical parameters:
Input voltage: typically 220VAC
Output voltage range: 0-480VAC
Rated power: 48kW
These parameters enable SDCS-PIN-48-SD to adapt to various industrial application scenarios.
Control method:
Adopting PWM (Pulse Width Modulation) control method to achieve precise energy conversion and transmission, improve energy efficiency, and help reduce energy waste.
Signal processing:
Equipped with signal processing capabilities, capable of filtering, amplifying, and processing received pulse signals to ensure signal stability and accuracy.
Physical characteristics:
Moderate size (such as 500mm x 300mm x 200mm), easy to install and integrate into various devices.
Weighing approximately 20kg, it is easy to transport and deploy.
The protection level reaches IP20, which can provide good protection performance in general industrial environments.
Interface and compatibility:
Usually has interfaces connected to encoders or other sensors to receive pulse signals.
It may also have an interface connected to the DC speed controller to transmit the processed signal to the speed controller for processing.
3、 Application Fields
SDCS-PIN-48-SD is widely used in various industrial production fields, such as mechanical processing, transportation equipment, printing machines, metallurgy, mining, textile, chemical, food and other industries. Devices in these fields typically require precise control of motor speed or position, and SDCS-PIN-48-SD is the ideal choice to meet this requirement.
