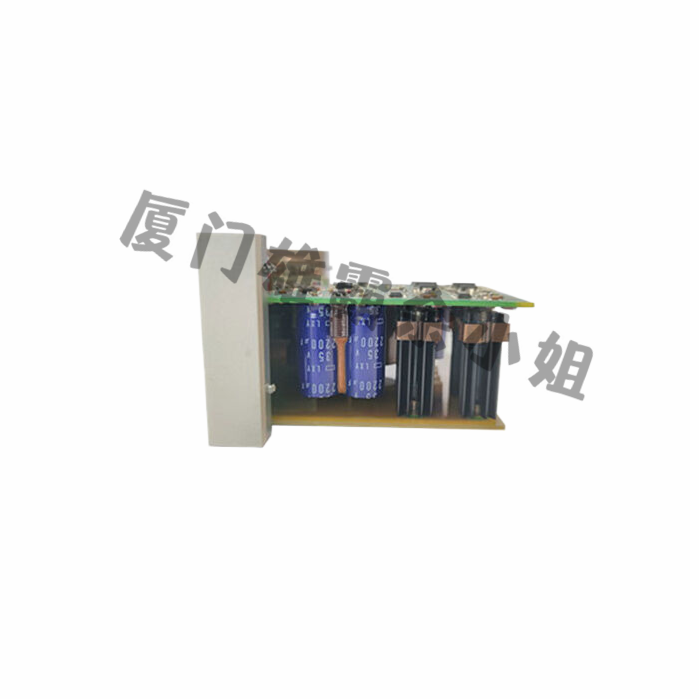

SA801F ABB Power module

1、 Product Features
Wide input power range: SA801F has a wide input power range (115~230VAC) to adapt to power standards in different countries and regions.
EMC filtering function: This module has EMC filtering function, which can effectively reduce electromagnetic interference and ensure the stability and reliability of the power supply.
Efficient output: Provides 3.3VDC ± 3% 5A and 5.0VDC ± 3% 5A outputs, with a total output power of 26.5W, meeting the power supply needs of various devices.
Monitoring and protection function: It has input and output voltage monitoring function, and can provide power failure signals. At the same time, it has overcurrent detection and short-circuit protection functions to ensure that the output maintains at least 20ms in case of power failure, protecting downstream equipment from damage.
Simulation testing capability: Using system simulation technology to achieve simulation and emulation functions of other components related to the tested component in the equipment and system, thereby achieving simulation testing of the operating environment of the tested component.
High quality materials and processes: using the latest power electronics technology to ensure low internal resistance and high efficiency. Meanwhile, the use of high-quality materials and strict production standards ensures its reliability and durability.
Easy to maintain: Designed with easily replaceable components, making it convenient for users to maintain and upgrade.
2、 Application Fields
SA801F ABB power modules are widely used in multiple fields, including but not limited to:
Industrial automation: In industrial automation systems, stable and reliable power is provided for various controllers, sensors, actuators, and other equipment to ensure the normal operation of automation equipment, improve production efficiency and quality.
Energy management: In energy management systems, providing power support for monitoring equipment and data acquisition systems helps to achieve monitoring, analysis, and optimization of energy consumption, reduce energy costs, and improve energy utilization efficiency.
Data Center: In the data center environment, stable power is provided for servers, network equipment, storage systems, etc. to ensure the continuity and availability of the data center.
Building automation: In building automation systems, power support is provided for lighting systems, air conditioning systems, security systems, etc., achieving intelligent control and energy conservation of building equipment, and improving the comfort and sustainability of buildings.
Transportation: In the field of transportation, providing power support for signal lights, railway signal systems, traffic monitoring equipment, etc., ensures the normal operation of the transportation system, and guarantees traffic safety and smoothness.
In addition, SA801F is widely used in modern industrial fields such as electricity, petroleum, mine hoisting, ports, heating, gas, water supply, sewage treatment, metallurgy, papermaking, textile, chemical, and water conservancy. It can be used in conjunction with various industrial control system components such as PLC programmable control systems, distributed control systems (DCS), safety instrumented systems (SIS), ESD systems, vibration monitoring systems, turbine control, and compressor unit control systems (CCS) to achieve precise and efficient automation control.
3、 Summary
The SA801F ABB power module plays an important role in multiple fields due to its high efficiency, reliability, safety, and ease of maintenance. It can not only provide stable and reliable power support for various devices and systems, but also help users improve production efficiency and equipment reliability through advanced technologies such as simulation testing.
