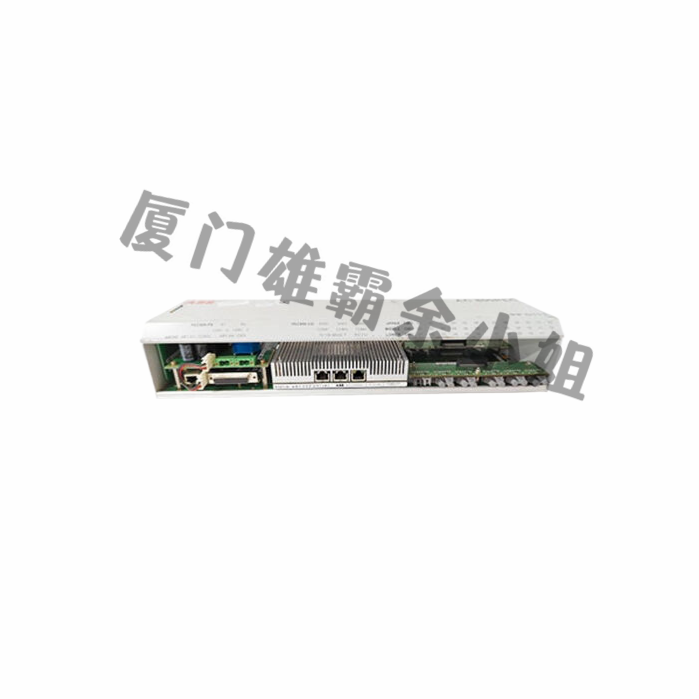

PPD113B03-26-100100 Digital Low Voltage Distribution System

1、 Product Overview
PPD113B03-26-100100 combines peer-to-peer parallel functionality with innovative features, aiming to provide a robust, attractive, and user-friendly solution. The system may include a central processing unit module, input/output modules, and other auxiliary devices, collectively forming a complete automation control system.
2、 Product Features
Programmable Logic Function: Through the Integrated LogicsManager ™， This system provides excellent application flexibility. This usually eliminates the need for additional PLC control, but can also be easily integrated with SCADA or PLC based control systems as needed.
Flexible hardware configuration: Regardless of the size of the application, PPD113B03-26-100100 provides the best hardware configuration that is easy to implement. The processing capability can be concentrated in a location with distributed logic I/O devices, or intelligent I/O devices can be configured in a site that improves performance and alleviates central pressure.
Modular system architecture: This system provides a variety of system architectures ranging from small to large and modular systems. This includes processor modules with integrated fast I/O devices, suitable for smaller applications, limited space applications, or intelligent field devices; A processor module with independent fast logic I/O devices, suitable for standard industrial applications with central processing or small applications with independent, fast I/O; And a large system that includes multiple central processing unit modules, intelligent I/O, and fast logic I/O devices.
Seamless integration and scalability: Thanks to its fully modular architecture, PPD113B03-26-100100 can be seamlessly integrated into higher-level factory control systems, providing convenience for future expansion and reconfiguration.
Efficient and Reliable: As an ABB product, this system may also have the characteristics of high efficiency, reliability, and long-term stable operation to meet the needs of various industrial applications.
3、 Technical parameters (some examples)
Power supply voltage: may vary depending on specific configuration, but the reference information mentions a voltage range of 24V or similar.
Current: May support a wide range of currents, such as 100-400A.
Weight: Approximately 2KG.
Operation mode: Supports remote control.
4、 Application scenarios
PPD113B03-26-100100 is widely used in industrial automation, process control, energy management, and other fields. It can be used to monitor and control production lines, mechanical equipment, process flows, etc., ensuring production efficiency and product quality. At the same time, it can also be connected to various sensors, actuators, and other devices to achieve real-time data collection and processing.

ABB, the world’s leading power and automation technology group, announced that it will provide a 363 kV high-voltage isolated circuit breaker with an all fiber current transformer for the Shaanxi Fuping Intelligent Substation. This circuit breaker combines three substation functions: isolation, circuit breaking, and current measurement, reducing the substation’s footprint by up to 70%. At the same time, it is also the world’s first isolated circuit breaker equipped with fiber optic current transformers at this high voltage level.

All fiber current transformers will replace traditional current transformers used for measurement and protection in integrated intelligent switches, and create conditions for grid automation. In the northwest region of China, the voltage level of 363 kV is the most common. This application is also the first commercial application of the isolated circuit breaker technology at this voltage level.

As part of the new generation intelligent substation project planned by State Grid Corporation of China in 2015, Shaanxi Fuping Intelligent Substation will provide electricity for the rapidly developing industrial belt around Fuping County, Shaanxi Province. The project aims to utilize the most advanced technology to enable remote control, protection, automation, monitoring, and analysis of substations, while reducing operating costs, footprint, and environmental impact. At the same time, the new generation of smart substations can make the national power grid more efficient, flexible, and reliable, laying the foundation for China’s increasing integration of renewable energy into the grid. According to data from the National Energy Administration of China, the cumulative installed capacity of renewable energy generation in China exceeded 400 million kilowatts in 2014, accounting for over 30% of the total installed capacity of electricity, continuing to maintain its position as the world’s largest country in terms of renewable energy utilization scale.

ABB has been providing the most advanced technology for China’s power infrastructure construction, supporting a stronger, smarter, and greener power grid through our equipment. This once again demonstrates that leading technology will be the key to ABB’s market leadership position under the ‘new stage’ strategy, “said Yuker, President of ABB’s Power Products Business

As a pioneer in isolated circuit breaker technology, ABB has installed approximately 1800 isolated circuit breakers worldwide. Since 2010, ABB has been operating a test project in Sweden for 420 kV high-voltage isolated circuit breakers equipped with all fiber current transformers, accumulating a wealth of experience in this field. This innovative technology not only integrates three types of substation functions, but also provides digital output of substation and grid automation related data, and is fully integrated into the smart grid based on the latest IEC digital communication standard (IEC 61850-9-2LE).

This technology can replace traditional switchgear and reduce the footprint of air isolation switches in substations by 70%. Not only that, it can also help high-voltage substations reduce several tons of equipment, improve substation safety, reduce installation time, save design, operation, and maintenance costs, and reduce environmental impact.

By the end of 2015, State Grid Corporation of China plans to build a new round of 50 next-generation smart substations and vigorously promote the construction of smart grids. ABB will provide innovative high-voltage isolation circuit breakers equipped with full fiber current transformers, intelligent medium voltage switchgear, and transformer intelligent electronic components (such as innovative self drying respirators) for 13 of the smart substations, helping to create a more efficient and reliable smart grid and achieve the “interconnection of goods, services, and people”.

ABB ranks among the Fortune Global 500 and is a leading enterprise in the fields of power and automation technology. ABB is committed to helping customers in the fields of power, industry, transportation, and infrastructure improve their performance while reducing their impact on the environment. ABB Group has operations in nearly 100 countries worldwide and employs 140000 people. ABB has comprehensive business activities in China, including research and development, manufacturing, sales, and engineering services. It has 19000 employees, 39 local enterprises, and a sales and service network covering 126 cities across the country.
