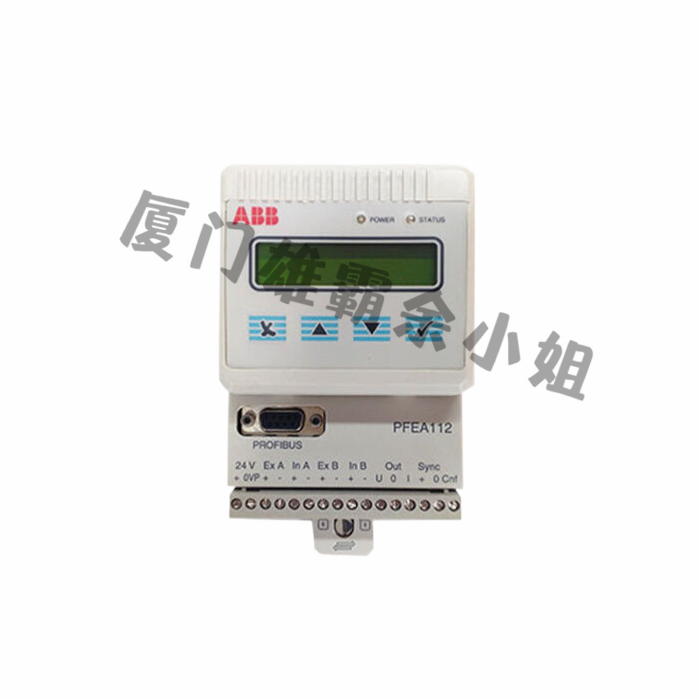

PFEA112-20 3BSE050091R20 tension controller

1、 Product Overview
Model: PFEA112-20 3BSE050091R20
Manufacturer: ABB
Type: Tension Controller
2、 Main functions and features
Tension control:
The main function of this controller is to monitor and adjust tension, ensuring that materials (such as paper, ropes, films, etc.) maintain the required tension level on the production line. This helps prevent the material from stretching, breaking, or relaxing, thereby improving production efficiency and product quality.
High precision control:
PFEA112-20 3BSE050091R20 may have high-precision tension control function, which can monitor and adjust tension sensors and adjustment devices in real time to ensure constant tension of materials during the production process.
Multiple input/output interfaces:
The controller may have multiple input/output interfaces, such as CANopen, EtherCAT, Profibus DP, and PROFINET, for connecting tension sensors, motors, actuators, etc., to achieve control and monitoring of the tension system.
PID control algorithm:
Support PID (Proportional Integral Derivative) control algorithm to maintain constant tension by controlling the winding and tension braking devices. This algorithm can accurately control the tension based on the feedback signal of the tension sensor, keeping the tension within the set value range.
Programmability:
PFEA112-20 3BSE050091R20 may have some programmability, allowing users to configure and adjust tension control parameters as needed to meet the requirements of different processes and materials.
Real time monitoring and alarm:
The controller can monitor the status of tension sensors and actuators in real time, and promptly identify and address issues that may affect tension stability. At the same time, it also has an alarm function that can sound an alarm when the tension exceeds the set range or other abnormal situations occur.
User interface:
Some controllers may be equipped with user-friendly interfaces, such as LCD screens and buttons, to facilitate parameter settings and system monitoring for users.
Modular design:
Adopting modular design makes installation, maintenance, and upgrades more convenient. Meanwhile, modular design also reduces the maintenance cost of the system.
Compliant with standards:
This tension controller may comply with relevant standards and specifications for industrial control equipment, ensuring its reliability and safety in industrial environments.
3、 Application Fields
The PFEA112-20 3BSE050091R20 tension controller is widely used in industrial applications that require tension control, including but not limited to:

Printing industry: used to control the tension of paper during the printing process to ensure printing quality.
Textile industry: Control the tension of yarns or fabrics in textile machinery to maintain the stability of the production process.
Packaging industry: Control the tension of packaging materials during the packaging process to ensure packaging effectiveness and product appearance.
Other industrial applications such as coating, stretching, cutting, winding, etc. require tension control.
4、 Summary
PFEA112-20 3BSE050091R20 is a powerful and stable tension controller, featuring high-precision control, multiple input and output interfaces, PID control algorithm, programmability, real-time monitoring and alarm, user-friendly interface, and modular design. It is widely used in various industrial applications that require tension control, providing strong guarantees for the production efficiency and product quality of enterprises.
