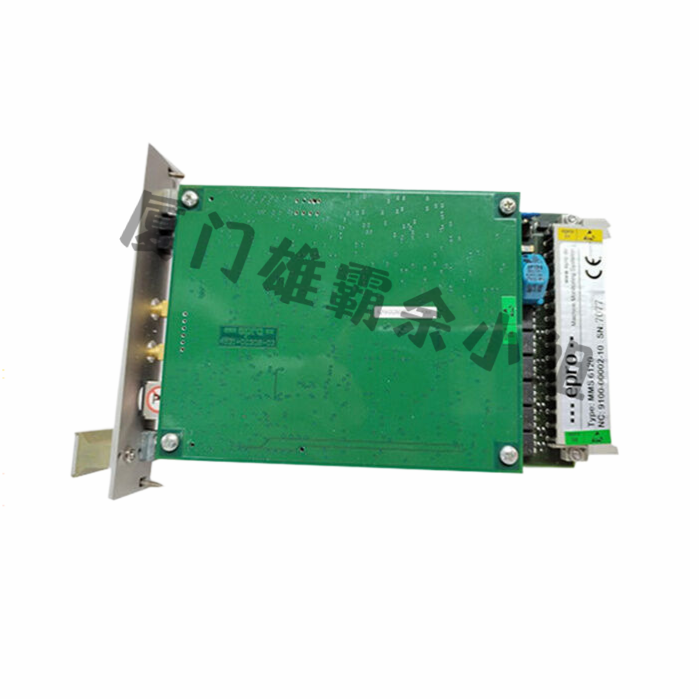

MMS6120 Dual channel bearing vibration measurement module

Measurement function:
Dual channel measurement: It can simultaneously monitor the vibration of bearings in two channels, suitable for various types of turbomachinery such as steam turbines, gas turbines, compressors, fans, gearboxes, blowers, centrifuges, etc.
Multiple measurement modes: capable of measuring bearing vibration in horizontal, vertical, or axial directions, and supporting multiple output types such as root mean square value of vibration velocity (VRMS), zero peak value (SOP) vibration displacement, peak to peak value (SPP) vibration displacement, etc., to meet different measurement needs.
Wide frequency range: The frequency range is usually 10-1000Hz (refer to VDI12056/DIN45666/ISO3945), and there are also other optional frequency ranges such as 5/10-50-1000/1600Hz, which can accurately measure vibration signals at different frequencies.
Signal processing and output:
Built in linearization processor: processes input sensor signals to improve measurement accuracy and stability.
Rich output interfaces: with two independent current outputs (0/4-20mA), configurable, open circuit and short circuit protection, allowing loads less than 500 Ω; Two independent voltage outputs (0-+10V), open circuit and short circuit protection, with a load impedance greater than 10k Ω; There are also two independent AC component voltage outputs (0-20Vpp) for spectrum analysis, with a frequency range of 0.1Hz-5kHz (± 20%/-3dB).
Sensor related characteristics:
Sensor adaptability: It is compatible with electric speed sensors such as PR9266/… and PR9268/… produced by EPRO company. The input voltage range of the sensor is -5V to+15VDC, and the input impedance is greater than 100k Ω.
Boosting coil current: The module provides an independent buffered boosting coil current output for each sensor to compensate for mechanical settling of the sensor coil. The current range is 0-8mA and can be set in the configuration with a step size of 40 μ A.
Other features:
Can be replaced during operation: supports hot swapping function, facilitates module maintenance and replacement without shutting down the system, reduces equipment downtime, and improves production efficiency.
Extended self checking function: Built in sensor self checking function and module monitoring circuit can continuously monitor whether the sensor signal is within the preset range, whether the connection cable between the sensor and the module is normal, whether the system power supply voltage is stable, whether the configuration and parameter settings are correct, and whether the internal temperature is overloaded, ensuring the reliability and stability of the system.
Communication function: Equipped with RS232/485 ports for on-site configuration and communication, it can read measurement values, making it convenient for users to set module parameters and read data.
Data storage function: capable of recording and storing the most recent start/stop measurement data, providing data support for equipment fault diagnosis and analysis.
