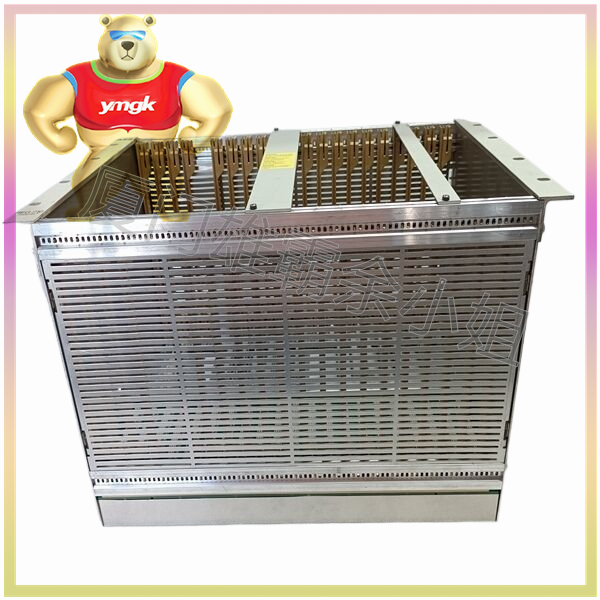

ABB REG216 Digital generator protection framework/protection module

1、 Product Overview
The ABB REG216 digital generator protection framework provides high stability and accuracy through modular design and comprehensive protection functions such as overcurrent, undervoltage, overvoltage, etc. It adopts advanced digital technology to accurately process and analyze signals to ensure the accuracy and reliability of protection. At the same time, the REG216 framework is equipped with comprehensive self checking and self diagnostic functions, which can timely detect and handle potential faults, thereby improving the reliability of the entire system.
2、 Main features
Modular design: The hardware and software of REG216 have high flexibility and scalability. Users can easily add or remove functional modules according to their actual needs to meet the needs of different scales and application scenarios.
Comprehensive protection functions: REG216 provides comprehensive generator protection strategies, including overcurrent protection, undervoltage protection, overvoltage protection, reverse power protection, and other protection functions. These functions can monitor the operating status of the generator in real time, and once any abnormal situation is detected, the protection mechanism will be quickly triggered to ensure the safe operation of the generator.
Differential protection technology based on vector product principle: This technology can maintain high stability during transient faults and CT saturation, while acting quickly. The differential protection action time is less than 30ms, effectively protecting the generator from damage.
High reliability and stability: REG216 adopts advanced digital technology and comprehensive self checking and self diagnostic functions to ensure the reliability and stability of the system.
Standard interface and communication capability: REG216 has a standard interface that is compatible with different process control systems. It can exchange data with higher process control layers, such as one-way reporting of digital status and events, measurement values, and protection parameters.
3、 Hardware composition
The REG216 device consists of two main components that are physically separated from each other and connected by standard prefabricated shielded cables:
Main system interfaces (CT, PT, and auxiliary relays): provide DC isolation and electromagnetic interference barriers.
Parallel bus and related electronic units: such as analog inputs and data processors/used for signal conditioning and processing.
A complete protection scheme consists of relatively few hardware modules, allowing for subsequent expansion of electronic units and interfaces. Each device framework can provide 21 rack spaces, and all hardware can be installed in one compartment to further shield against inductive interference and provide physical protection such as dust prevention.
4、 Main functional components
216GW62 component: used to adjust signal levels and isolate the CT and PT circuits of the primary system from the electronic circuits of the protection device. There is one PT and two CT options available to meet different precision and dynamic performance requirements.
Trip auxiliary relay component: equipped with powerful potential free trip contacts (with surge circuit), 16 auxiliary relays, and 16 optocouplers.
Processing Unit 216VC624: Equipped with a 32-bit 80486DX-2 processor, it has functions such as application software stored in flash EPROM, running data stored in RAM, and settings on non-volatile flash EPROM.
Analog input unit 216EA62: It has 24 inputs that are sampled simultaneously, with 6 in each group. The sampling frequency is 600 (720) Hz, and the power frequency is 50 (60) Hz.
Digital output unit 216AB61: With 32 output terminals, it is used to control the relay of the output auxiliary relay component.
Trip output and binary input unit 216DB61: has 8 output terminals for bipolar control of auxiliary trip relays, and 16 digital input terminals for inputting signals of auxiliary relay components.
5、 Application Fields
The ABB REG216 digital generator protection framework or protection module is widely used in generator and transformer protection scenarios of various scales, especially in industrial environments that require high reliability and stability. It can provide users with comprehensive protection solutions to ensure the safe and stable operation of the power system.
